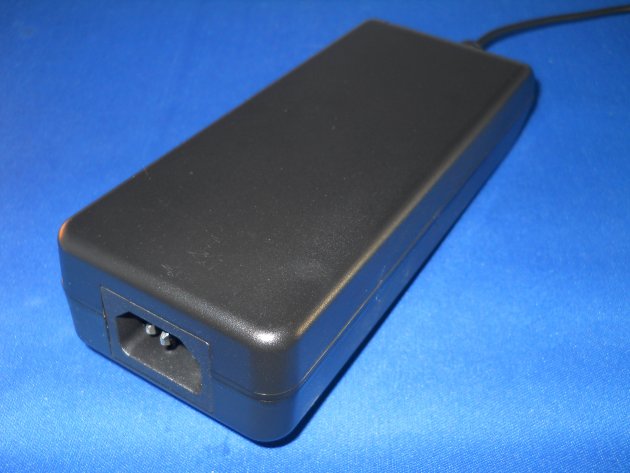

PS1120-T1A Desktop Power Adapter IEC 320 C14- Class I

Production information

PS1120 Series  Desk Top  120W

Model No

PS1120-XYZ

Part No

PS1120-120YZ~
PS1120-150YZ

PS1120-190YZ~
PS1120-240YZ

PS1120-320YZ~
PS1120-360YZ

PS1120-410YZ~
PS1120-480YZ

 PS1120-530YZ~
PS1120-570

Item

Output Voltage

12.0-15.0V

19.0-24.0V

32.0-36.0V

41.0~48.0V

 53.0~57.0V

Output Current(Max )

1.00-10.00A

1.00-6.30A

1.00-6.75A

1.00-2.90A

 1.00-2.26A

Output Power(Max )

120W

120W

120W

120W

 120W

Input Votage

AC90~264V

Input Frequency

47~63Hz

Input Current

2.0A Maximum

Inrush Current

40A Maximum

Line Regulation

1% Maximum

Ripple&Noise

1% Maximum

Load Regulation

5% Maximum

Efficiency

DOE VI & COC Tr2

EMC(EMI/EMS)

CE,FCC, C-Tick,VCCI

Safety Standard

CB,CCC, GS,LVD,PSE, UL,KC,KCC

Operating Temperature

~40℃

Over-Voltage Protection

Auto Recovery

Storage Temperature

-20~85℃

Short-circuit Protection

Auto Recovery




Short-circuit Protection                                                                Low Ripple/Noise
MTBF 50000 HRS At 25℃                                                             MTBF 50000 HRS At 25℃
100% Hi-Pot & ATE Tested                                                           Over-Current Protection
LVD authentication                                                                       Over-Voltage Protection
FCC Part15 CLASS B, Compliance                                              100%Burn-in under (45℃)
Regulations Compliance                                                                Efficiency Doe VI  CoC Tier 2
Cispr 22 CLASS B,VCCI CLASS B,                                                    FCC Part15 CLASS B, Compliance
