ATX 400W with Battery Backup function
AUP-520P-S20
Production information
80Plus Bronze Nonstop Power Supply(RS232C signal type)
- Backup function protects PCs at blackout
- 80PLUS BRONZE acquired
- All outputs have the minimum load of 0A
- Less than 1W standby power complying with ErP directive(Contribute to the reducing CO2 emissions and electricity costs)
- Thermo-sensing speed control fan allows for a quiet environment
- 80PLUS BRONZE acquired
- All outputs have the minimum load of 0A
- Less than 1W standby power complying with ErP directive(Contribute to the reducing CO2 emissions and electricity costs)
- Thermo-sensing speed control fan allows for a quiet environment

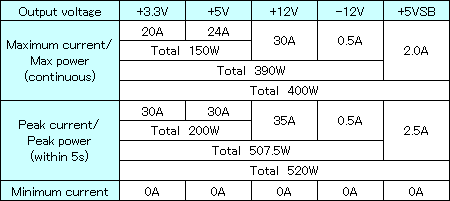

Output specification
Standard specifications:
| Compatible case size |
PS2
|
|
|
Outline drawing
|
150Wx86Hx140D
|
|
|
Weight
|
1.80 kg typ
|
|
|
AC
|
85 to 264V
|
|
|
DC
|
24V(Dedicated battery package only)
|
|
|
AC
|
80% typical at AC 100V/85% typical at AC 200V
|
|
|
DC
|
80% typ
|
|
|
96% min. at AC 100V/90% min. at AC 200V
|
||
|
Worldwide
|
||
|
AC, DC input
|
 |
|
|
UL60950-1, CSA C22.2 No.60950-1,CCC S&E, CE Marking (LVD, EMC)
|
||
|
IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2(A14)Class D compliant
|
||
|
VCCI-B FCC-B and EN55022-B compliant
|
||
|
Low Voltage Directive, EMC Directive
|
||
|
Electrostatic discharge: EN61000-4-2 compliant
Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips/regulations: EN61000-4-11 compliant |
||
|
70,000H min
|
||
|
0 to 60 deg C (load derating: 100% at 45 deg C, 70% at 60 deg C)
|
||
|
0.5mA max. at AC 100V, 1.0mA max. at AC 200V, 1.2mA max. at AC 240V
|
||
|
Forced air cooling
|
||
|
|
||
|
|
||
|
SU-RS (RS232C), SU-BU (buzzer), SU-US2 (USB)
|
||
|
Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
|
||
